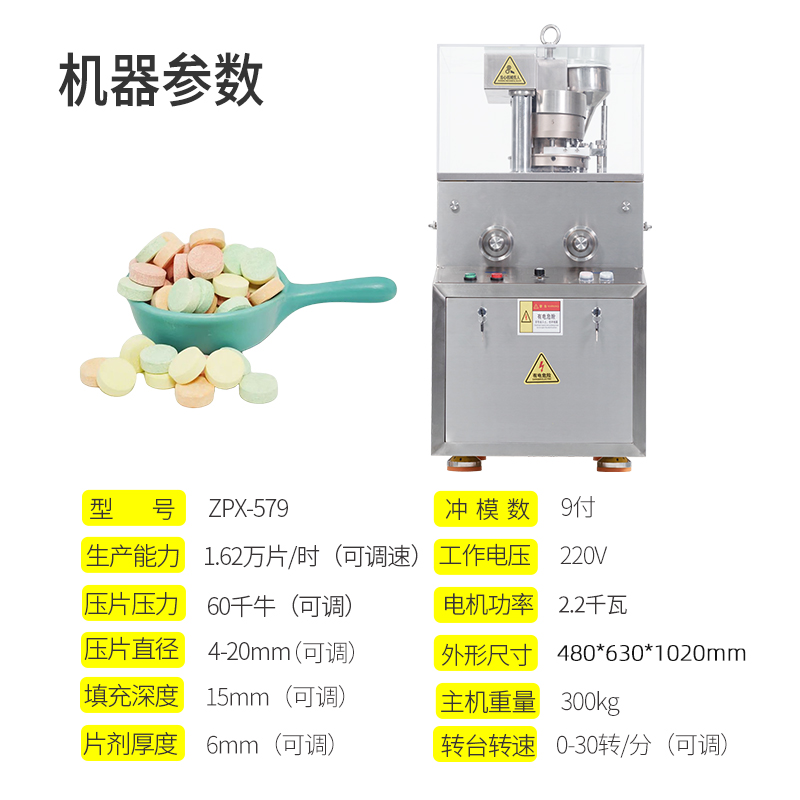

| 型号Model | ZPX-5 | ZPX-7 | ZPX-9 |
| 冲模数Dies | 5 | 7 | 9 |
| 可调压力Maximum Pressure (k N) | 60 | ||
| 可装模具直径Maximum Diameter of Tablets(mm) | 4-20 选一个规格 | ||
| 可调充填深度Maximum Depth of Filling(mm) | 15 | ||
| 可调片厚Maximum Thickness of Tablets(mm) | 6 | ||
| 可调转台转速Turret Speed(r/min) | 0-30 | ||
| 可调产量Production Capacity(tablets/hour) | 9,000 | 12,600 | 16,200 |
| 电机功率Motor (kw) | 2.2 | ||
| 外形尺寸Overall Size (mm) | 480*630*1020 | ||
| 机器重量Net Weight (kg) | 300 | ||
